Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter

Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: Aangepast
Garantie: 12 Months/1000-Uren
Type: Stil (super Stil) of Open, Stil, enz., in-line/6-Cylinder/4-Stroke/4-Valve/19L, Geluiddichte (Stille
Configuratiescherm: LCD Digitale Vertoning, Diepzee, ComAp, Diepzee/ComAp/Harsen/Smartgen 6110, Smartgen
Uitvoertype: AC Enig/In drie stadia
Controleur: Diepzee/Smartgen/enz.
Sollicitatie: Indurstybank enz.
Nominale spanning: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
Dynamo: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Dieselgenerator, generator 56kw, aangedreven door YUCHAI-dieselgenerator, standby-gebruiksvermogen D
kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 70kva
MOTOR: Originele Fawde
Koelmethode: Waterkoelingssysteem
Markeren:

70kva silent diesel generator

,

56kw customizable genset inverter

,

open type diesel power generator
Basis informatie
Plaats van herkomst: China
Merknaam: FAWDE
Certificering: CE
Modelnummer: 4110 125Z - 09D
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Multiplex
Levertijd: 30 dagen
Levering vermogen: 500 stks per maand
Productomschrijving

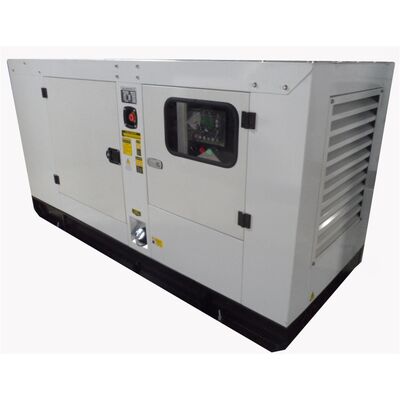

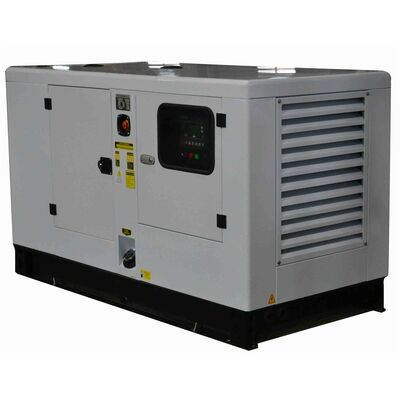

Intelligent Diesel Generator 70kVA Open Type Silent Diesel Electric Power Generator 56kW Customizable Genset Inverter
Product Overview

Our 56kW 70KVA BOBIG FAWDE diesel generator (Model: 4110 125Z - 09D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 56kW (70KVA) to meet various industrial, commercial, and residential power needs with stable and efficient output.

Frequency: Standard 50Hz operation suitable for most electrical equipment.

Engine Excellence

Engine Model: 4110 125Z - 09D FAWDE engine with high torque, fuel efficiency, and low emissions.

Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.

Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 70 77
Power Rating (kW) 56 62
Frequency (Hz) 50
Engine Model 4110/125Z-09D-YFD10W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Engine Model 4110/125Z-09D
No. of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 110 mm
Stroke 125 mm
Compression Ratio 17:1
Displacement 4.75 L
Dry Engine Weight 420 kg
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224F
Alternator Rated Power 56kw/70kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H class
Dimensions and Weight
Model BFA77 (Open Type) BFA77S (Silent Type)
Length (mm) 2000 2600
Width (mm) 710 970
Height (mm) 1300 1210
Tank Capacity (L) 129 129
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty and Service

BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.

Why Choose Us
  • Brand Reputation: Trusted manufacturer with proven reliability
  • Quality Assurance: Strict adherence to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on your specific requirements
Company Information

We are an electrical machinery manufacturer with 10,000 square meters of factory area and 160 employees. Our main products include gasoline generators, diesel generators (5-2000kva), gas generators, and pumps. We hold ISO9000 Quality System Certification and maintain advanced testing equipment to ensure product quality.

Factory & Facilities
Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 0 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 1 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 2 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 3 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 4 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 5 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 6 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 7 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 8 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 9 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 10 Intelligent diesel Generator 70kva Open Type Silent diesel Electric Power Make Generator 56kw Customizable Genset Inverter 11
Frequently Asked Questions
Ordering & Payment

Q: What is your MOQ, payment method, and delivery time?

A: MOQ is 1 set. Payment methods include 30% T/T deposit with 70% balance before delivery, or 100% L/C, Trade Assurance, PayPal, Western Union. Delivery time is 10-15 working days after receiving deposit.

Shipping & Support

Q: Which port do you use for export?

A: Fuzhou port, Fujian province or as requested by customer.

Q: Can you provide spare parts for maintenance?

A: Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.

Q: Can you customize voltage, frequency, and other specifications?

A: Yes, voltage, frequency, tank capacity, phase, and color can all be customized to your requirements.
