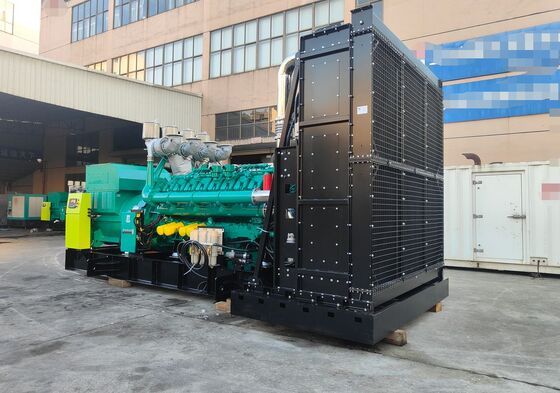

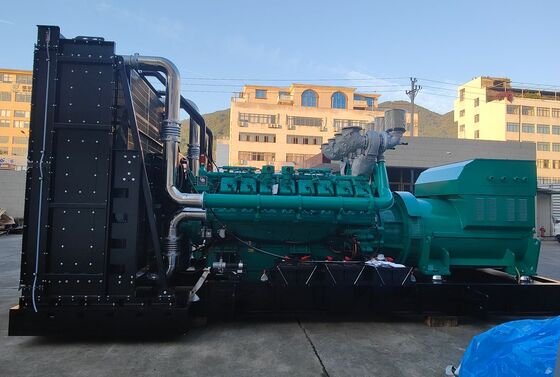

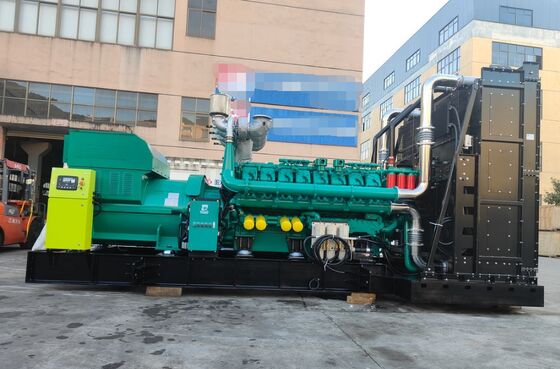

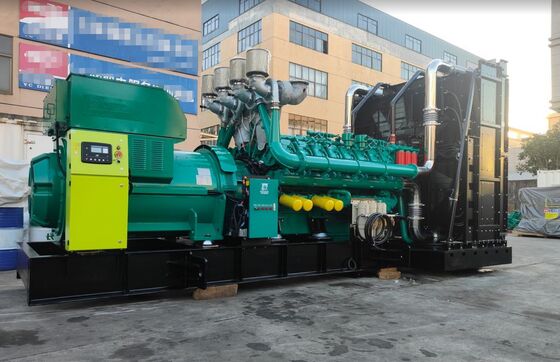

YUCHAI 2000kW 2500KVA Generator Silent Open Type Diesel Generator Set
Product Overview
Our 2000kW 2500KVA BOBIG YUCHAI diesel generator (Model: YCC105TA3300 - G31) is designed to provide reliable power for a wide range of applications. Backed by the renowned Yuchai brand and powered by Perkins technology, it offers high-quality performance and long-term durability.
Key Features
Power Performance
With a rated power of 2000kW (2500KVA), this generator meets the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads. Operating at a standard frequency of 50Hz, it is suitable for most electrical equipment.
Engine Excellence
Powered by the YCC105TA3300 - G31 engine, this generator combines advanced technology and high-quality manufacturing. The engine, leveraging power technology from Perkins, is known for its high torque, fuel efficiency, and low emissions. Running at 1500 RPM, it provides smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
2500 |
2750 |
| Power Rating (kW) |
2000 |
2200 |
| Frequency (Hz) |
50 |
| Engine Model |
YCC105TA3300-G31 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (Customizable) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Engine Specifications
| Engine Model & Manufacturer |
YCC105TA3300-G31 (YUCHAI) |
| Number of Cylinders |
16 |
| Cylinder Arrangement |
Vertical |
| Cycle |
Four Stroke |
| Aspiration |
Turbocharged, water-air intercooled |
| Bore x Stroke |
200 x 210 mm |
| Cubic Capacity |
105.56 L |
| Compression Ratio |
13.5:1 |
| Prime Power/Speed |
2205 kW/1500 rpm |
| Standby Power/Speed |
2450 kW/1500 rpm |
| Governor Type |
Mechanical |
| Cooling System |
Direct Injection |
| Total Lubrication System Capacity |
140 L |
| Coolant Capacity (Engine Only) |
623.5 L |
| Fuel Consumption @ 100% Load |
205.7 g/kWh @1500 rpm |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Alternator Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-454H |
| Alternator Rated Power |
2000kw/2500kva |
| Rated Voltage |
230v/400v |
| Rated Frequency |
50hz |
| Connecting Type |
3 Phase and 4 W |
| Number of Bearing |
1 |
| Protection Grade |
IP23 |
| Altitude |
≤1000m |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
| Voltage Regulation, Steady State |
≤±1% |
Dimensions and Weight
| Model |
BYU2750 (Open Type) |
BYU2750S (Silent Type) |
| Length (mm) |
7280 |
5600 |
| Width (mm) |
2715 |
2200 |
| Height (mm) |
3164 |
2550 |
| Tank Capacity (L) |
4600 |
4600 |
Applications
This diesel generator is ideal for a variety of applications:
- Industrial Use: Backup power source for factories, ensuring continuous production during power outages
- Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services like lighting, elevators, and security systems
- Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Quality Standards
Our generator complies with multiple international and national standards, including ISO 8528-5:2018, GB/T2820.5-2009, and CE. These certifications guarantee the quality, safety, and reliability of the product.
Environmental Adaptability
- Ambient Temperature: Operates effectively in temperatures from +5°C to +40°C
- Altitude: Suitable for use at altitudes up to 1000m
For different environmental conditions, our sales team can provide customized solutions.
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more.
Our company has obtained ISO9000 Quality System Certification and maintains strict quality control using advanced equipment including CAD systems, auto assembling & winding & inserting equipment, vacuum dipping systems, and digital testing equipment.
Factory Images
Workshop
Equipment
Production
Testing
Package
Services & Warranty
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first) from the ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance.
Why Choose Us
- Brand Reputation: Yuchai is a well-known and trusted brand with a long history of producing high-quality products
- Quality Assurance: Products manufactured according to international standards with rigorous quality inspections
- Customization Options: Customized solutions based on specific requirements
- Professional Support: 24/7 technical support, maintenance, and repair services
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Also accept 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you often use when export?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide along with generators to make maintenance convenient?
We provide regular engine air filter, water filter, fuel filter, and oil filter for customer self-maintenance.
Can you offer parts to us if we need?
Yes, we can offer parts at any time (not limited to warranty period). Parts typically shipped within 3-5 days.
For voltage, frequency, tank capacity, phase and color, can you customize according to our requests?
Yes, all specifications can be customized according to your needs.
If I want to be your products distributor in our country, what is your distribution policy?
We welcome distributors worldwide. We can issue authority certificates and sign distribution agreements accordingly.
