Thuis /Producten/Yangdong Diesel Generator/40kva Diesel Generator Super Power Generator Diesel 40kva Factory Direct Sale Silent Diesel Generator 32kw Power Capacities

40kva Diesel Generator Super Power Generator Diesel 40kva Factory Direct Sale Silent Diesel Generator 32kw Power Capacities

40kva Diesel Generator Super Power Generator Diesel 40kva Factory Direct Sale Silent Diesel Generator 32kw Power Capacities
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: aangepast
Garantie: 12 maanden/1000 uur
Type: Stil (super stil) of open, stil, enz., In-line/6-cilinder/4-takt/4-kleppen/19L, geluiddichte (stil)
Configuratiescherm: Digitaal LCD-display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Uitvoertype: AC enkel/driefasig
Controleur: Diepzee/Smartgen/etc
Sollicitatie: Indurstybank enz
Nominale spanning: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Dynamo: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Dieselgenerator, generator 40kva, aangedreven door YANGDONG-dieselgenerator, standby-gebruiksvermoge
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 40 kVA
Motor: Originele Yangdong
koelmethode: Waterkoelsysteem
Markeren:

40kva silent diesel generator

,

32kw diesel generator factory direct

,

yangdong diesel generator with warranty
Basis informatie
Plaats van herkomst: China
Merknaam: YANGDONG
Certificering: CE
Modelnummer: Y4105D
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: multiplex
Levertijd: 30 dagen
Levering vermogen: 500 stuks per maand
Productomschrijving

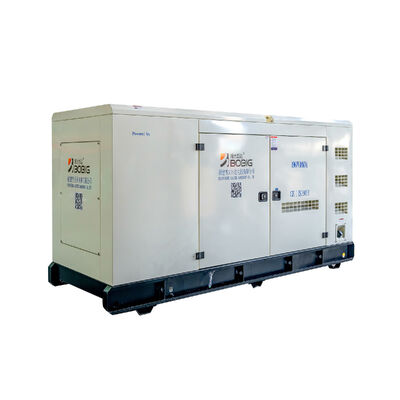

32kW 40KVA BOBIG YANGDONG Diesel Generator (Model: Y4105D)
Our 32kW 40KVA BOBIG YANGDONG diesel generator (Model: Y4105D) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: With a rated power of 32kW (40KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.
Engine Excellence
Engine Model: Powered by the Y4105D YANGDONG engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 40 44
Power Rating (kW) 32 35
Frequency (Hz) 50
Engine Model Y4105D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Specifications
Engine Model & Manufacturer Y4105D (YANGDONG)
No. of Cylinders 4
Injection Type Direct
Aspiration Natural
Configuration Vertical
Bore 105 mm
Stroke 118 mm
Compression Ratio 18
Displacement 4.087 L
Dry Engine Weight 330 kg
Dimension (L*W*H) 892*618*740 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184J
Alternator Rated Power 32kw/40kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Applications
  • Industrial Use: It can be used as a backup power source for factories, ensuring continuous production during power outages.
  • Commercial Buildings: Office buildings, shopping malls, and hotels can rely on it to maintain essential services like lighting, elevators, and security systems.
  • Residential Areas: Provide reliable power to residential communities, especially in areas with unstable power grids.
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues. Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
