Thuis /Producten/Stille Diesel Generator/High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling

1SET
MOQ
3399-3642USD
Prijs
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Snelheid: 1500 tpm
Frequentie: 50/60 Hz
Nominaal vermogen: 5 kW tot 2000 kW
Uitvoertype: AC driefasig
Type: Open of stil (superstil)
Kleur: Op uw verzoek, aangepast
Markeren:

Quanchai silent diesel generator 20KW

,

water cooling diesel generator 25KVA

,

open type diesel generator power supply
Basis informatie
Plaats van herkomst: China
Merknaam: QUANCHAI
Modelnummer: QC498D
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: multiplex
Levertijd: 40werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 50 sets per maand
Productomschrijving
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling
High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.
Product Overview
Factory Price Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 25 28
Power Rating (kW) 20 22
Frequency (Hz) 50
Engine Model QC498D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BQ28 (Open Type) BQ28S (Silent Type)
Length (L) mm 1450 2100
Width (W) mm 610 850
Height (H) mm 1100 1050
Tank Capacity (L) 46 46
Engine Specifications
Engine Model & Manufacturer QC498D (QUANCHAI)
Model QC498D
Bore*Stroke (mm) 98×105
Total Displacement (L) 3.17
Rated Power (kw) 25 30
Standby Power (kw) 28 33
Rated Speed (r/min) 1500 1800
Rated Power For Generator Sets (kva) 25 30
Standby Power For Generator Sets (kva) 28 33
Rated Power For Generator Sets (kw) 20 24
Standby Power For Generator Sets (kw) 22.5 26.4
Steady State Speed Governing Rate % ≤5
Max Speed On No Load (r/min) 1575
Min Speed On No Load (r/min) 800
Specific Fuel Consumption Rate At Max. Speed (g/kW*h) ≤243
Net Weight (kg) 240
Dimension (L*W*H) (mm) 775×590×690 (WITHOUT AIR FILTER AND RADIATOR)
Rotation (Viewed From Flywheel) COUNTER CLOCKWISE
Flywheel House Sizing SAE4＃ SAE3＃
Flywheel House Sizing SAE7.5″SAE10″ SAE11.5″
Number Of Teeth Of The Flywheel 120
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184FS
Alternator Rated Power 20kw/25kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

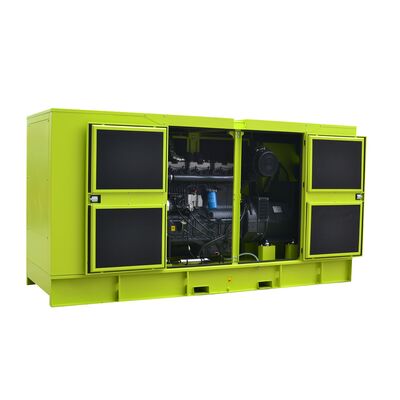

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 0
Front View

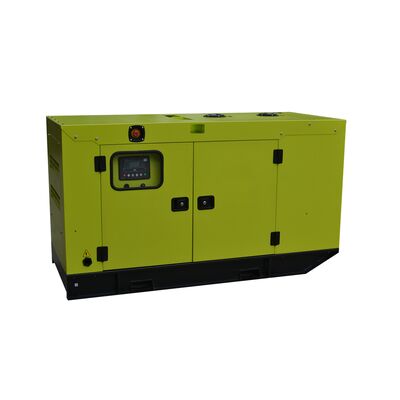

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 1
Side View

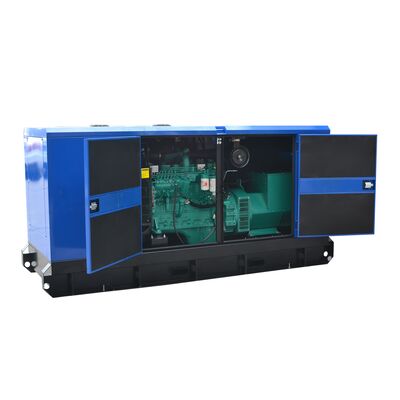

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 2
Control Panel

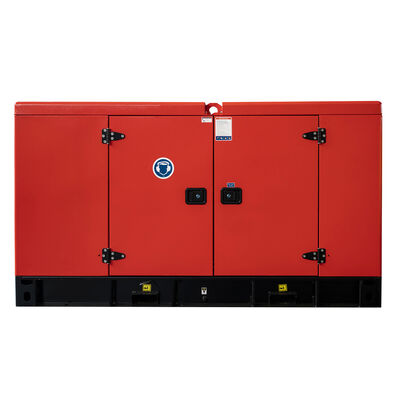

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 3
Engine Detail

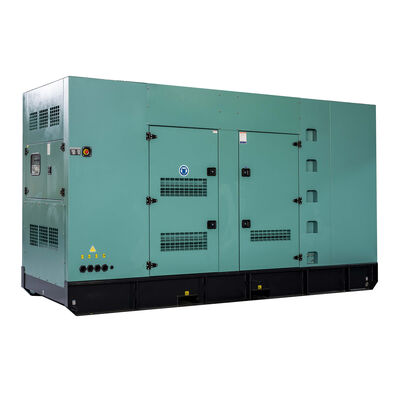

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 4
Alternator View

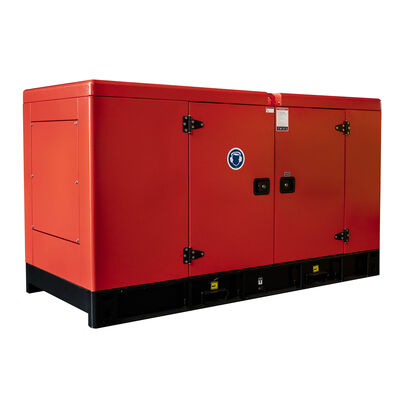

High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 5
Silent Type Exterior
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 6
Internal Components
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 7
Cooling System
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 8
Fuel System
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 9
Electrical Connections
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 10
Full Assembly
High Quality Open/Silent Type Quanchai Diesel Generator 20KW/25KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
