Super Silent Cummin S 120kW 150KVA Portable diesel Generator Set Water Cooled Soundproof for Home ATS 3 Phase Good Quality

Super Silent Cummin S 120kW 150KVA Portable diesel Generator Set Water Cooled Soundproof for Home ATS 3 Phase Good Quality
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: Aangepast
Garantie: 12 maanden/1000 uur
type: Stil (super stil) of open, stil, enz., In-line/6-cilinder/4-takt/4-kleppen/19L, geluiddichte (stil)
Configuratiescherm: Digitaal LCD-display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Uitvoertype: AC enkel/driefasig
Controleur: Diepzee/Smartgen/etc
Sollicitatie: Indurstybank enz
Nominale spanning: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Dynamo: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Dieselgenerator, generator 100 kW, aangedreven door CUMMIN S-dieselgenerator, standby-gebruiksvermog
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 120 kW
Motor: Origineel CUMMIN S
koelmethode: Waterkoelsysteem
Markeren:

Cummins diesel generator 150KVA silent

,

portable diesel generator set water cooled

,

soundproof home generator ATS 3 phase
Basis informatie
Plaats van herkomst: China
Merknaam: CUMMIN S
Certificering: CE
Modelnummer: 6BTAA5.9-G12
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Bubbeltje wikkel
Levertijd: 30 dagen
Levering vermogen: 500 stuks per maand
Productomschrijving

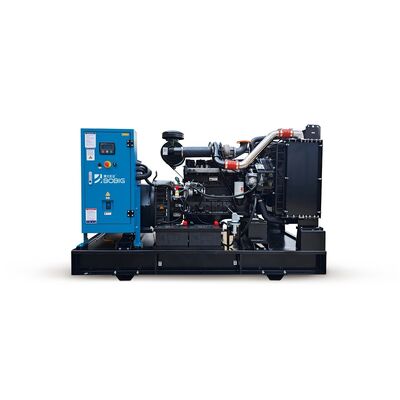

120kW 150KVA BOBIG CUMMIN S Diesel Generator Set
Model: 6BTAA5.9-G12 - Reliable Power Solution
Product Introduction
Our 120kW 150KVA BOBIG CUMMIN S diesel generator (Model: 6BTAA5.9-G12) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance:
Rated Power: 120kW (150KVA) to meet various industrial, commercial, and residential power needs. Prime power output is stable and efficient, ensuring continuous operation under heavy loads.
Frequency: Standard 50Hz operation suitable for most electrical equipment.
Engine Excellence:
Engine Model: 6BTAA5.9-G12 CUMMIN S engine combining advanced technology with high-quality manufacturing. Known for high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth, consistent power supply with minimized wear.
Applicable Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications for guaranteed quality, safety, and reliability.
Environmental Adaptability
Ambient Temperature: Effective operation from +5°C to +40°C.
Altitude: Suitable for use up to 1000m. Custom solutions available for different environmental conditions.
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 150 165
Power Rating (kW) 120 132
Frequency (Hz) 50
Engine Model 6BTAA5.9-G12
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability.
Dimensions and Weight

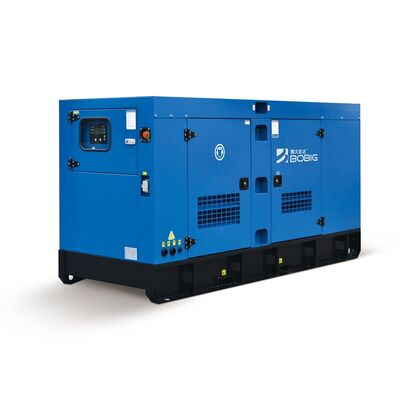

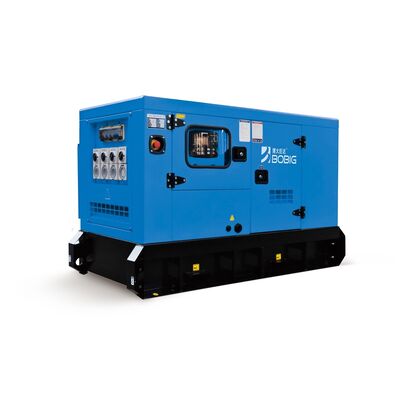

Model BC165 (Open Type) BC165S (Silent Type)
Length (mm) 2500 3150
Width (mm) 900 1120
Height (mm) 1600 1530
Tank Capacity (L) 276 276
Engine Specifications
Engine Model & Manufacturer 6BTAA5.9-G12 (Cummin S)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged Air-to-Air Cooling
Bore x Stroke 102 x 120 mm
Displacement 5.9 L
Compression Ratio 17.3:1
Prime Power/Speed 140 kW/1500 rpm
Standby Power/Speed 156 kW/1500 rpm
Fuel System Beiyou P7100 Pump / SEGMA Electronic Governor
Cooling System Force Water Cooling Cycle
Frequency Droop ≤ 5%
Total Lubrication System Capacity 16.4 L
Coolant Capacity (Engine Only) 10 L
Fuel Consumption @ 100% Load 203 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274E
Alternator Rated Power 120kW/150kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Customization & Features
We support customization and OEM services with design drawings.
All units are equipped with original power supplies and come with standard DSE 6120 controller. Engine, generator, and controller options are available.
Super Silent Cummin S 120kW 150KVA Portable diesel Generator Set Water Cooled Soundproof for Home ATS 3 Phase Good Quality 0
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products carry a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
Why Choose BOBIG
  • Brand Reputation: CUMMIN S is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific customer requirements
