New Hot Sale Powered by DOOSAN Engine 6M26D447E200 Silent Type 360kw 450kva 400kw 500kva diesel Generator Set

1
MOQ
26000-31000USD
Prijs
New Hot Sale Powered by DOOSAN Engine 6M26D447E200 Silent Type 360kw 450kva 400kw 500kva diesel Generator Set
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Markeren:

DOOSAN engine silent diesel generator

,

450kva silent diesel generator set

,

400kw DOOSAN diesel generator
Basis informatie
Plaats van herkomst: China
Merknaam: DOOSAN
Certificering: ISO 9001
Modelnummer: DP158LC
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: 450*181*236cm
Levertijd: 30 WERKDAGEN
Levering vermogen: 500 stuks per maand
Productomschrijving
DOOSAN DP158LC Diesel Generator Set
High-performance, heavy-duty diesel generator set designed for reliable prime and standby power applications. Engineered with the renowned DOOSAN engine, this 360kW unit features a robust soundproof canopy for low-noise operation, making it ideal for construction, industrial, commercial, and emergency backup use.
DOOSAN DP158LC Diesel Generator Set exterior view DOOSAN DP158LC Diesel Generator Set internal components
Power Specifications
Prime Power
450 kVA / 360 kW
Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards
10% overload capability for 1 hour within 12-hour operation
Standby Power
495 kVA / 396 kW
For emergency power supply during utility power interruptions
No overload capability at this rating
General Specifications Prime Power Standby Power
Rated Power (kVA) 450 495
Power Rating (kW) 360 396
Frequency (Hz) 50
Engine Model DP158LC
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Operating Time ≥ 8 hours @ 75% load
Dimensions & Weight
Model BDO495 (Open Type) BDO495S (Silent Type)
Length (mm) 3600 4500
Width (mm) 1500 1810
Height (mm) 2460 2360
Tank Capacity (L) 828 828
Engine Specifications
Engine Model & Manufacturer DP158LC (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128 × 142mm
Displacement 14.6 liters
Cylinders and Arrangement Cast iron, 8 cylinder, Vee-Type
Battery Charging Alternator 27.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 22 liters, Min. 13 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 1155kg (engine only)
Dimension (LxWxH) 1274 × 1138 × 1207 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Alternator Rated Power 360kW/450kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Advanced auto start and auto mains failure control module with alternator frequency and CAN speed sensing capabilities.
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance scheduling
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored and displayed simultaneously
  • Configurable to suit wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility with data logging facility
  • Internal PLC editor with protections disable feature
  • Fully configurable via PC using USB communications
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs with real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions with run-time scheduler
  • IP65 rating (with optional gasket) for water resistance
DSE 6120 Control Panel display and interface
Available Options
Engine Options Alternator Options Fuel System Options Generating Set Options
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank
Product Images

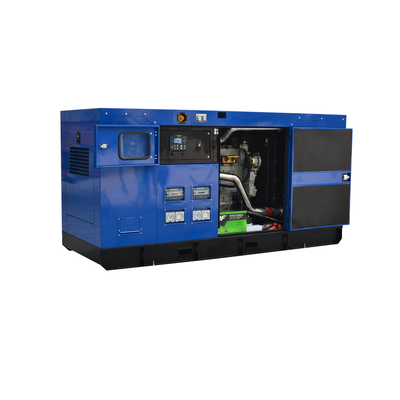

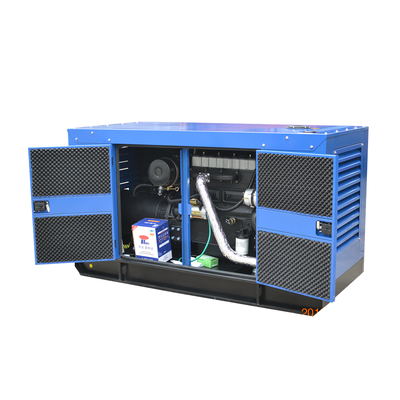

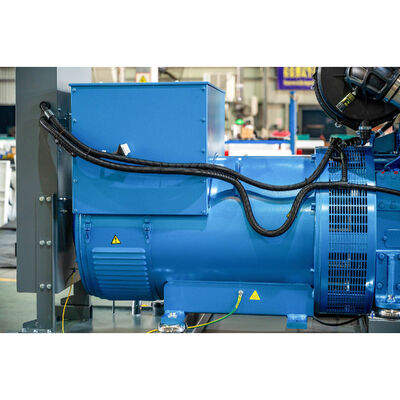

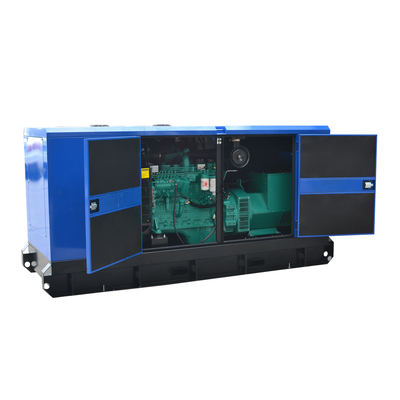

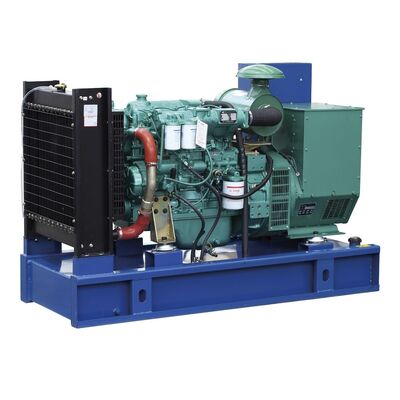

DOOSAN generator set operational view DOOSAN generator set internal engine view DOOSAN generator set control panel close-up DOOSAN generator set complete unit DOOSAN generator set installation view
