Open/Silent Portable Diesel Generator for Home 650kW 813KVA Durable Portable Power 3phase diesel Generator diesel for Sale

Open/Silent Portable Diesel Generator for Home 650kW 813KVA Durable Portable Power 3phase diesel Generator diesel for Sale
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: Aangepast
Garantie: 12 maanden/1000 uur
Type: Stil (super stil) of open, stil, enz., In-line/6-cilinder/4-takt/4-kleppen/19L, geluiddichte (stil)
Configuratiescherm: Digitaal LCD-display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Uitvoertype: AC enkel/driefasig
Controleur: Diepzee/Smartgen/etc
Sollicitatie: Indurstybank enz
Nominale spanning: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Dynamo: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Dieselgenerator, generator 813KVA, aangedreven door CUMMIN S-dieselgenerator, standby-gebruiksvermog
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 650 kW
Motor: Origineel CUMMIN S
koelmethode: Waterkoelsysteem
Markeren:

silent portable diesel generator 650kW

,

3 phase diesel generator for home

,

durable Cummins diesel generator 813KVA
Basis informatie
Plaats van herkomst: China
Merknaam: CUMMIN S
Certificering: CE
Modelnummer: KTA38-G2B
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Bubbeltje wikkel
Levertijd: 30 dagen
Levering vermogen: 500 stuks per maand
Productomschrijving
650kW 813KVA BOBIG CUMMIN S Diesel Generator

Model: KTA38-G2B - Reliable Power Solution for Industrial, Commercial, and Residential Applications

Power Performance Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 813 894
Power Rating (kW) 650 715
Frequency (Hz) 50
Phase 3
Power Factor (PF) 0.8
Rated Voltage (V) 400/230 (Customizable)
Engine Specifications
Engine Model & Manufacturer KTA38-G2B (Cummins)
Engine Speed (RPM) 1500
Number of Cylinders 12
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged, Aftercooled
Displacement 38 L
Fuel System Cummins PT
Cooling System Force Water Cooling Cycle
Alternator Details
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404C
Rated Power 650kW/813kVA
Protection Grade IP23
Insulation Class H class
Voltage Regulation ≤±1% (Steady State)
Dimensions & Weight
Model Type Length (mm) Width (mm) Height (mm) Tank Capacity (L)
BC894 (Open Type) 4300 1750 3125 1495
BC894S (Silent Type) 5600 2200 2500 1495
Key Features
  • Standard DSE 6120 controller included
  • Fuel consumption: 200 g/kWh @1500 rpm at 100% load
  • Operating time: ≥ 8 hours @ 75% load
  • Environmental adaptability: +5°C to +40°C ambient temperature
  • Suitable for altitudes up to 1000m
  • Brushless, self-exciting alternator with AVR automatic voltage regulation
  • 100% copper windings
Compliance & Certifications

Our generator complies with international standards including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
Product Certification 1 Product Certification 2
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Customization & OEM Services

We support complete customization and OEM services with design drawings. All components including engine, generator, and controller are optional to meet your specific requirements.

Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Our professional after-sales service team provides 24/7 technical support, maintenance, and repair services.

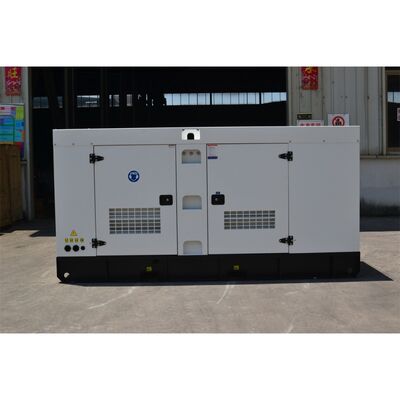

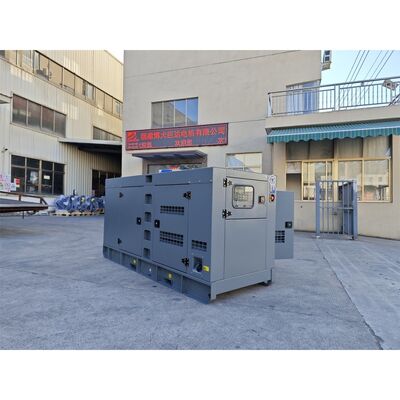

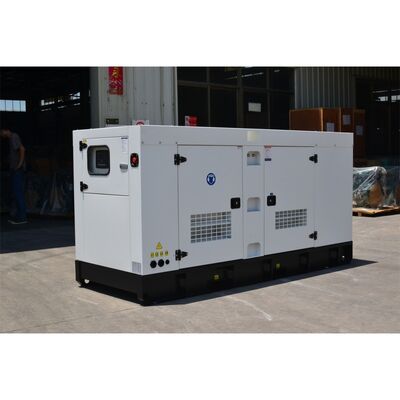

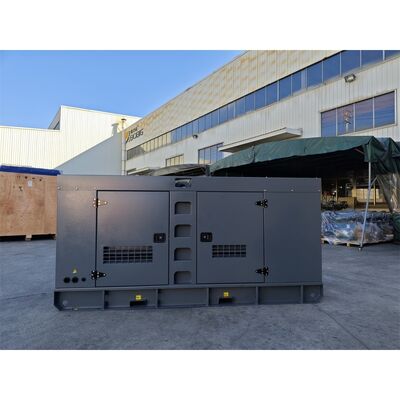

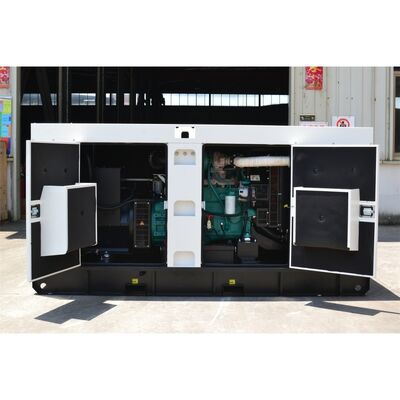

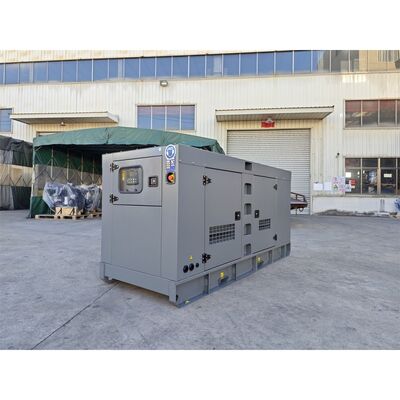

Product Image
650kW 813KVA BOBIG CUMMIN S Diesel Generator
