CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator
Product Overview

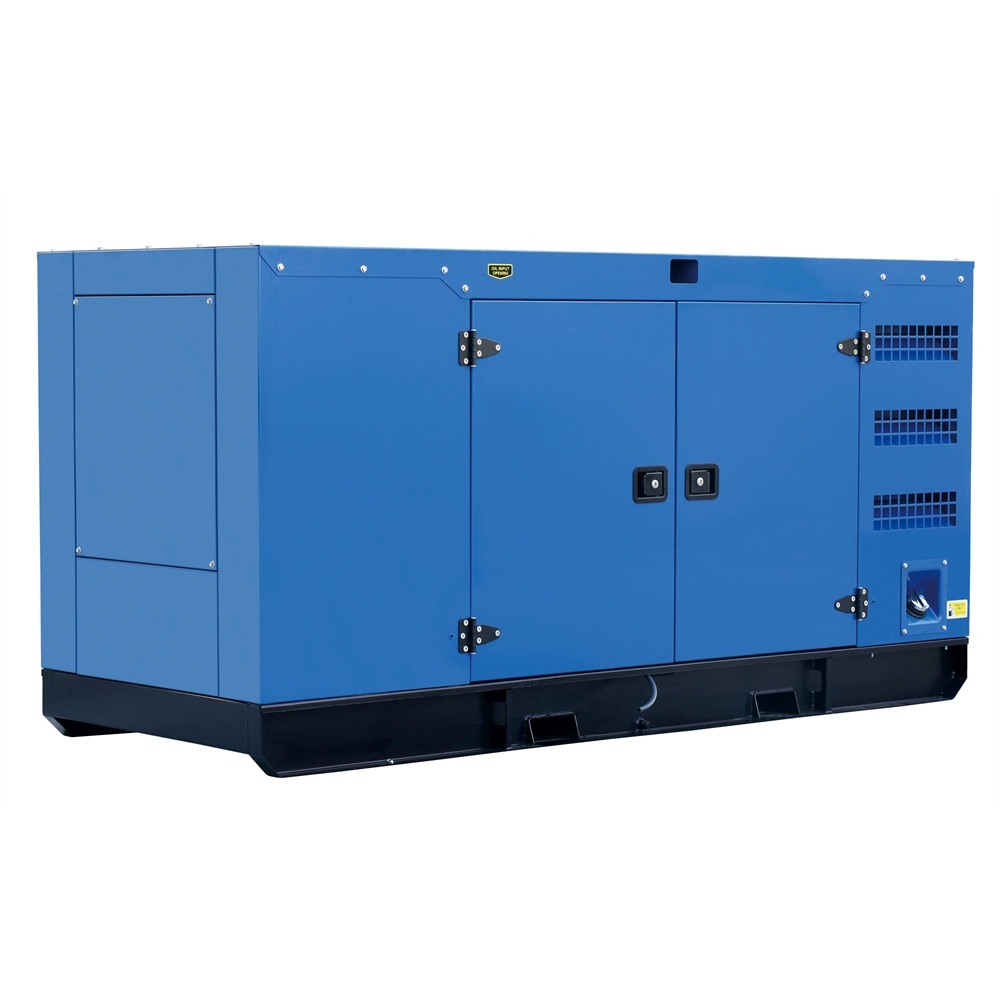

Our BOBIG 3TNV88-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Yanmar engine, this 10kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator Price CE ISO 0 CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator Price CE ISO 1
General Specifications
Parameter Prime Power Standby Power
Rated Power (kVA) 13 14
Power Rating (kW) 10 11
Frequency (Hz) 50
Engine Model 3TNV88-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN14 (Open Type) BYN14S (Silent Type)
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 23 23
Engine Specifications
Engine Model & Manufacturer 3TNV88-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore×Stroke (mm) 3-φ88×90
Combustion System Direct Injection
Compression Ratio 19.1
Displacement (liter) 1.642
Rated Output kW(PS)/min⁻¹ 13.2(17.9)/16.2(22) at 1500/1800
Continuous Rating kW(PS)/min⁻¹ 12.2(16.6)/14.7(20) at 1500/1800
Specific Fuel Consumption g/kW-h(g/PS-h) 245(180) (at rated output)
Ambient Condition 25℃, 750mmHg, 30%
Direction of Rotation Counterclockwise (viewed from F.W.)
Engine Dry Weight (kg) Approx. 155
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164C
Alternator Rated Power 10kw/13kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator Price CE ISO 2
Key Benefits
  • Automatically transfers between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance
  • User-friendly set-up and button layout
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • 3-phase generator sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator Price CE ISO 3 CE ISO 20kw Yanmar 3TNV88-GGE Diesel Generator Price CE ISO 4
