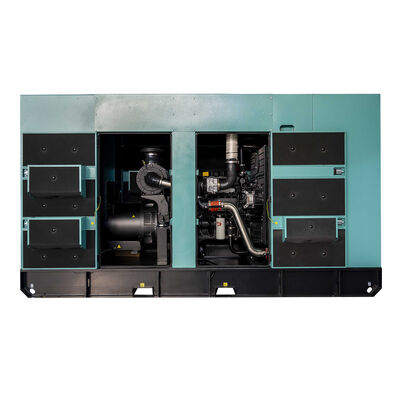

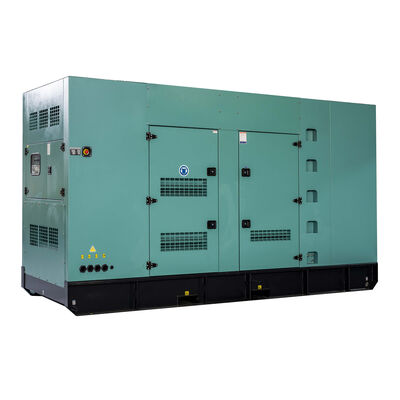

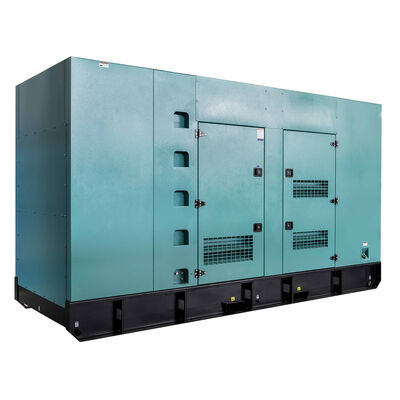

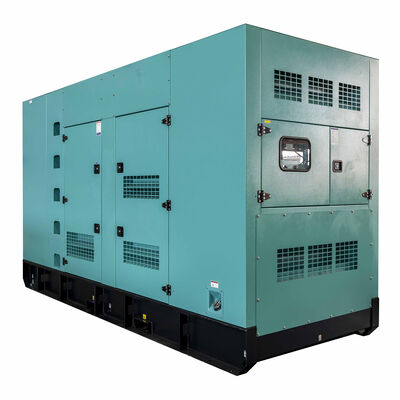

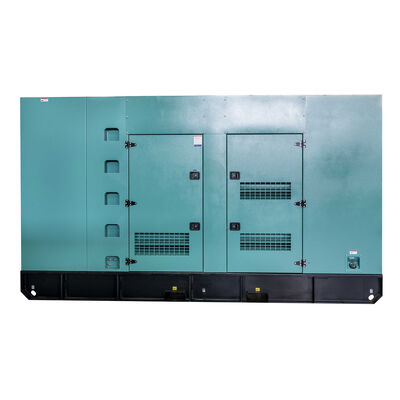

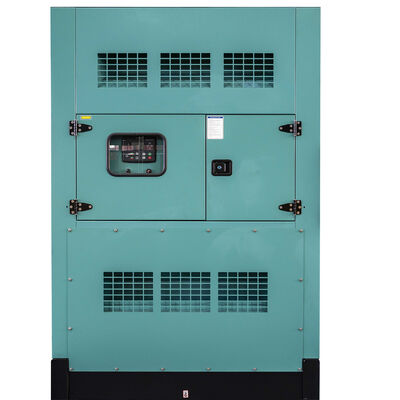

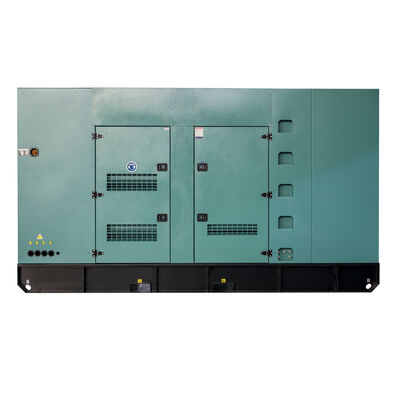

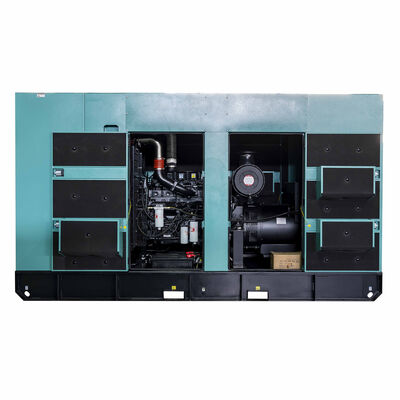

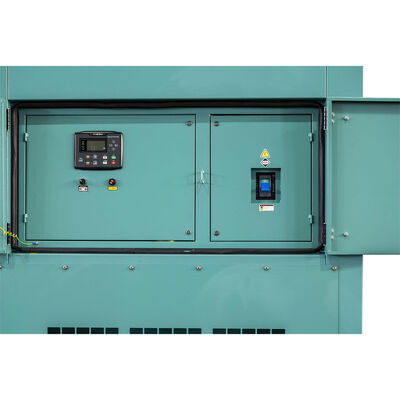

Chinese Top Factory Perkings Silent Diesel Generators Set 36kW 45kva Standby Electric Soundproof Generator ATS Option Rated 230v/400v

Chinese Top Factory Perkings Silent Diesel Generators Set 36kW 45kva Standby Electric Soundproof Generator ATS Option Rated 230v/400v
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: Aangepast
Garantie: 12 Months/1000-Uren
Type: Stil (super Stil) of Open, Stil, enz., in-line/6-Cylinder/4-Stroke/4-Valve/19L, Geluiddichte (Stille
Configuratiescherm: LCD Digitale Vertoning, Diepzee, ComAp, Diepzee/ComAp/Harsen/Smartgen 6110, Smartgen
Uitvoertype: AC Enig/In drie stadia
Controleur: Diepzee/Smartgen/enz.
Toepassing: Indurstybank enz.
Nominale spanning: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNATOR: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Aanpasbare PERKINS 45kva 36kW dieselgeneratoren, voor huishoudelijk gebruik, industrieel gebruik, zi
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 45KVA
Motor: Originele Perkins
Koelmethode: Waterkoelingssysteem
Markeren:

Perkins silent diesel generator 36kW

,

soundproof diesel generator with ATS

,

Perkins standby generator 230v/400v
Basis informatie
Plaats van herkomst: China
Merknaam: PERKINS
Certificering: CE
Modelnummer: 1103A-33TG1 (VK)
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Multiplex
Levertijd: 30 dagen
Levering vermogen: 500 stks per maand
Productomschrijving
36kW 45KVA BOBIG PERKINS Diesel Generator Set
Our 36kW 45KVA BOBIG PERKINS diesel generator (Model: 1103A-33TG1 (UK)) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 36kW (45KVA) - meets power needs for various industrial, commercial, and residential applications
Frequency: 50Hz standard frequency suitable for most electrical equipment
Engine Excellence
Engine Model: 1103A-33TG1 (UK) PERKINS engine with high torque, fuel efficiency, and low emissions
Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 45 50
Power Rating (kW) 36 40
Frequency (Hz) 50
Engine Model 1103A-33TG1
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications with 10% overload capability for 1 hour within 12-hour operation
ESP: Standby power rating for emergency power supply during utility interruptions
Dimensions and Weight
Model Type BP50 (Open) BP50S (Silent)
Length (mm) 1600 2000
Width (mm) 700 930
Height (mm) 1200 1250
Tank Capacity (L) 83 83
Engine Details
Engine Model & Manufacturer 1103A-33TG1 (PERKINS)
Number of Cylinders 3
Cylinder Arrangement Vertical inline
Cycle Four stroke
Aspiration Turbocharged
Bore x Stroke 105 x 127 mm
Cubic Capacity 3.3 L
Compression Ratio 17.25:1
Governor Type Mechanical
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 8.3 L
Coolant Capacity (engine only) 11.8 L
Fuel Consumption @ 100% load 207 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224C
Alternator Rated Power 36kw/45kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Applications
  • Industrial Use: Backup power source for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support and maintenance.
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more. Our company holds ISO9000 Quality System Certification.
