Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator

Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Luifel: Aangepast
Garantie: 12 maanden/1000 uur
Type: Stil (super stil) of open, stil, enz., In-line/6-cilinder/4-takt/4-kleppen/19L, geluiddichte (stil)
Configuratiescherm: Digitaal LCD-display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Uitvoertype: AC enkel/driefasig
Controleur: Diepzee/Smartgen/etc
sollicitatie: Indurstybank enz
Nominale spanning: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Dynamo: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Aanpasbare PERKINS 200kW 250KVA dieselgeneratoren, voor huishoudelijk gebruik, industrieel gebruik,
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 250KVA
Motor: Originele Perkins
koelmethode: Waterkoelsysteem
Markeren:

Perkins 200kW silent diesel generator

,

Perkins 250KVA generator with Stamford alternator

,

Customizable Perkins diesel generator set
Basis informatie
Plaats van herkomst: China
Merknaam: PERKINS
Certificering: CE
Modelnummer: 1206A - E70TTAG3
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: multiplex
Levertijd: 30 dagen
Levering vermogen: 500 stuks per maand
Productomschrijving
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set - 1206A - E70TTAG3 with Stamford Alternator
Product Overview

Our 200kW 250KVA BOBIG PERKINS diesel generator (Model: 1206A - E70TTAG3) is engineered to deliver reliable power for diverse applications. Backed by the renowned PERKINS brand, it offers superior performance and long-term durability.

Key Features
Power Performance

Rated Power: 200kW (250KVA) for industrial, commercial, and residential applications

Frequency: 50Hz standard operation

Engine Excellence

Engine Model: 1206A - E70TTAG3 PERKINS engine

Engine Speed: 1500 RPM for smooth, consistent power

Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model 1206A-E70TTAG3
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model BP275 BP275S
Type Open Silent
Length (mm) 2600 3400
Width (mm) 1000 1250
Height (mm) 1850 1750
Tank Capacity (L) 460 460
Engine Specifications
Engine Model & Manufacturer 1206A-E70TTAG3 (PERKINS)
Number of Cylinders 6
Cylinder Arrangement Vertical Inline
Cycle Four Stroke
Aspiration Twin Turbocharged, Aftercooled
Bore x Stroke 105 x 135 mm
Cubic Capacity 7.01 L
Compression Ratio 15.8:1
Prime Power/Speed 217.4 kW/1500 rpm
Standby Power/Speed 239.1 kW/1500 rpm
Alternator Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 200kw/250kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Protection Grade IP23
Insulation Class H Class
Customization & OEM Services

We support complete customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller are optional).

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing support thereafter.

Why Choose Us
  • Brand Reputation: Trusted PERKINS engine technology
  • Quality Assurance: Rigorous international standard compliance
  • Customization Options: Tailored solutions for specific requirements

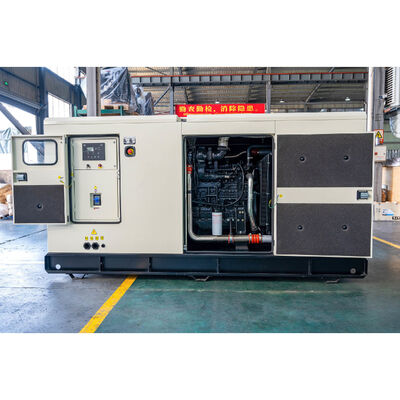

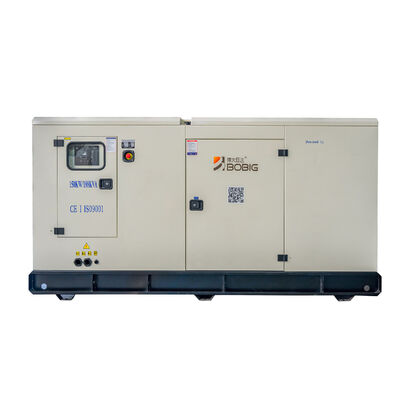

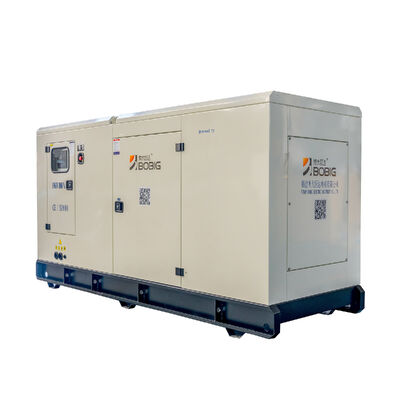

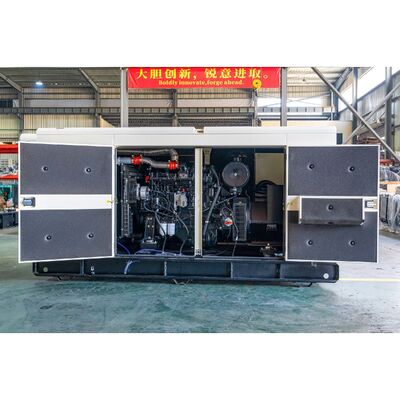

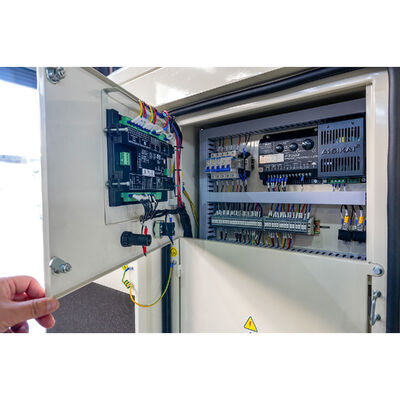

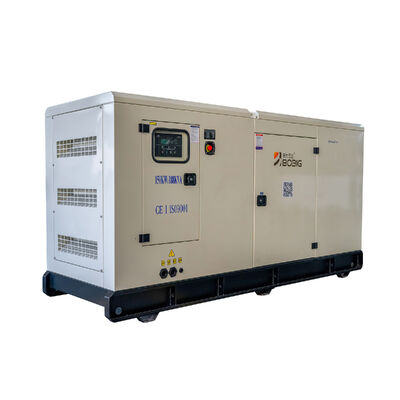

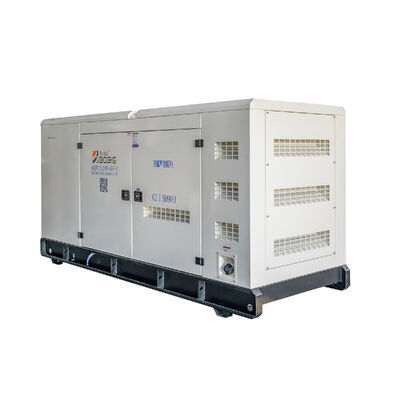

Product Image
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 0
Certifications
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 1 Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 2
label:

Perkins Power Generator

Perkins Silent Diesel Generator

perkins reservegenerator
