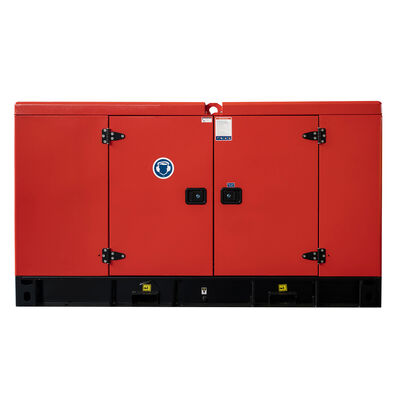

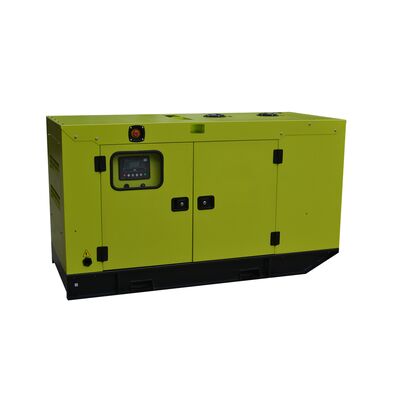

Name: Factory Price Open/Silent Type SDEC Diesel Generator 500KW/625KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SC27G830D2
Price: 4,615.00 USD
Availability: InStock

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Snelheid: 1500 tpm

Frequentie: 50/60 Hz

Nominaal vermogen: 5 kW tot 2000 kW

Uitvoertype: AC driefasig

Type: Open of stil (superstil)

Kleur: Op uw verzoek, aangepast

Markeren:

SDEC diesel generator 500KW water cooling

silent type SDEC diesel generator

open type SDEC generator 625KVA

Basis informatie

Plaats van herkomst: China

Merknaam: SDEC

Modelnummer: SC27G830D2

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Multiplex

Levertijd: 20Work Days

Betalingscondities: L/C, T/T

Levering vermogen: 50 stuks per maand

Galerij

Factory Price Open/Silent Type SDEC Diesel Generator 500KW/625KVA Power Supply Water Cooling

Productomschrijving

Factory Price Open/Silent Type SDEC Diesel Generator 500KW/625KVA Power Supply Water Cooling

Customized Factory Price Open/Silent Type SDEC Diesel Generator 500KW/625KVA Power Supply Water Cooling

Product Overview

High quality water cooling SDEC diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General information	Prime power	Standby power
Rated Power (kVA)	625	688
Power Rating (kW)	500	550
Frequency (Hz)	50
Engine Model	SC27G830D2
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated voltage (V)	400/230 (According to customer requirements)
Fuel tank capacity operating time	≥ 8h @ 75% load

Power Definitions

PRP (Prime Power): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Emergency Standby Power): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Dimension and Weight	Open type	Silent type
Model	BSD688	BSD688S
Length (L) mm	3800	4500
Width (W) mm	1740	1810
Height (H) mm	2745	2360
Tank capacity (L)	1150	1150

Note: Specifications and illustrations are subject to revision without notice.

Engine Specifications

Engine model & manufacturer	SC27G830D2(SDEC)
Engine Model	SC27G830D2
Engine Type	V-type, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion type	Direct injection
Cylinder Type	wet cylinder liner
Number of cylinders	12
Bore × stroke	135 × 155 mm
Displacement	26.6 lit.
Compression ratio	16 : 1
Firing order	1-12-5-8-3-10-6-7-2-11-4-9
fuel injection advance angle	13.5°BTDC
Dry weight	2080 kg
Dimension	1930×1686×1872mm
Rotation	CCW viewed from flywheel
Fly wheel housing	SAE 0#
Fly wheel	SAE 18#(number of teeth: 137)
Injection pump	YiJie Inline Type P Pump
Governor	Electric type
Feed pump	Mechanical type
Injection nozzle	Multi hole type
Heavy duty diesel engine	Starter battery (with lead acid) including rack and cables
Anti-vibration mount	Flexible fuel connection hoses
Replaceable fuel filter, oil filter & air filter	Exhaust silencer and bellows
Cooling radiator and fan	Operation manuals and circuit diagram documents

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-354E
Alternator Rated Power	500kw/625kva
Rated voltage (V)	230v/400v
Rated frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%

Product Images

Front View

Side View

Control Panel

Engine Detail

Alternator View

Silent Type Exterior

Internal Components

Cooling System

Fuel System

Electrical Connections

Full Assembly

Quality Inspection

Specifications and illustrations are subject to revision without notice.
