50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA

50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Garantie: Aangepast
Type: Stil (super Stil) of Open, Stil, enz., in-line/6-Cylinder/4-Stroke/4-Valve/19L, Geluiddichte (Stille
Configuratiescherm: LCD Digitale Vertoning, Diepzee, ComAp, Diepzee/ComAp/Harsen/Smartgen 6110, Smartgen
Uitvoertype: AC Enig/In drie stadia
Controleur: Diepzee/Smartgen/enz.
Sollicitatie: Indurstybank enz.
Nominale spanning: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNATOR: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford of Newtec, Engga
Productnaam: Dieselgenerator, generator 720 kW, aangedreven door BAUDOUIN-dieselgenerator, standby-gebruiksvermog
Kleur: De eis van klanten
Frequentie: 50/60 Hz
Nominaal vermogen: 720 kW
Motor: Originele Baudouin
Koelmethode: Waterkoelingssysteem
Markeren:

720kW diesel generator water cooling

,

900KVA soundproof diesel generator

,

Baudouin silent diesel generator

Basis informatie
Plaats van herkomst: China
Merknaam: BAUDOUIN
Certificering: CE
Modelnummer: 8M33G1000/5
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Multiplex
Levertijd: 30 dagen
Levering vermogen: 500 stks per maand
Productomschrijving

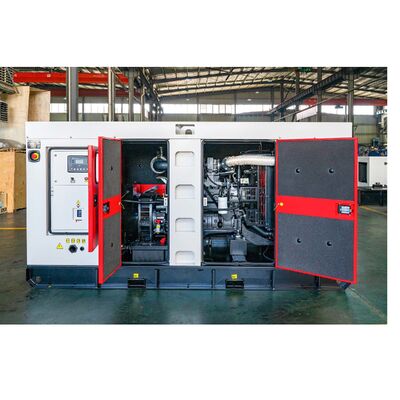

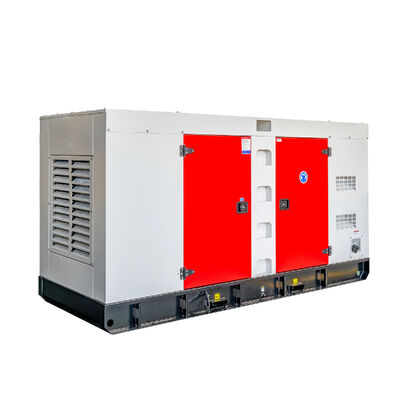

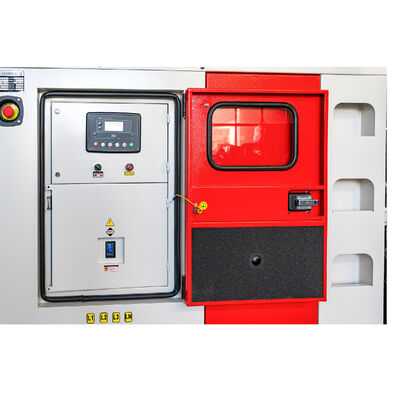

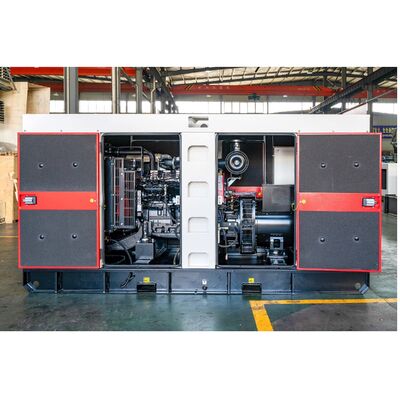

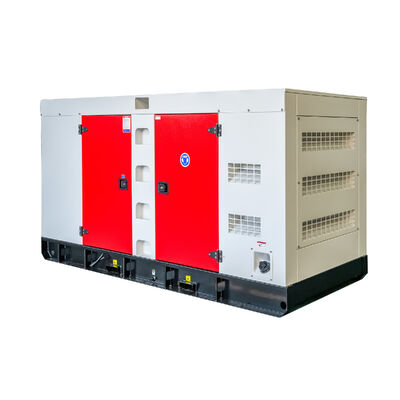

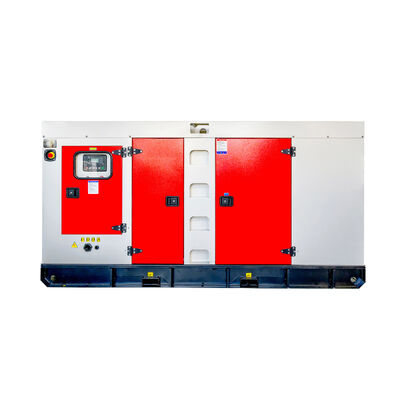

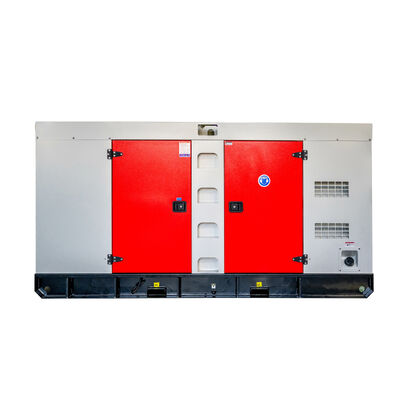

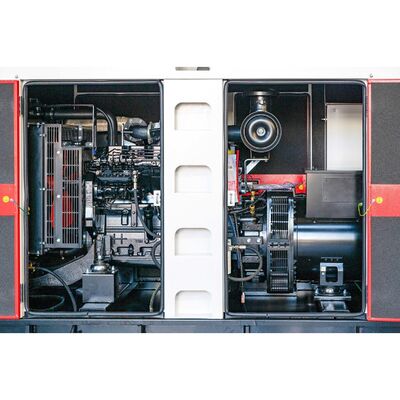

50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators
Product Overview

Our 720kW 900KVA BOBIG BAUDOUIN diesel generator (Model: 8M33G1000/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: With a rated power of 720kW (900KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.

Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.

Engine Excellence

Engine Model: Powered by the 8M33G1000/5 BAUDOUIN engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.

Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.

Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 900 990
Power Rating (kW) 720 792
Frequency (Hz) 50
Engine Model 8M33G1000/5
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Specifications
Engine Model & Manufacturer 8M33G1000/5 (BAUDOUIN)
Number of Cylinders / Valves 8 / 32
Cylinders Arrangement At Vee
Bore x Stroke (mm) 150 x 185
Displacement (L) 26.14
Thermodynamic Cycle Diesel 4 stroke
Firing Order A1-B4-A4-A3-B2-A2-B3-B1
Mean Piston Speed (m/s) 9.25
BMEP @ ESP (Bar) 27.237949503
Cooling System Liquid (water + 50% antifreeze)
Injection System Direct
Fuel System Mechanical Pump
Aspiration Turbocharged and Aftercooled
Compression Ratio 15:1
Flywheel Housing SAE 0
Flywheel 18"
Rotation Viewed from Flywheel Counter Clockwise
Number of Teeth on Flywheel Ring Gear 194
Inertia of Flywheel (kg•m²) 6.47
Inertia of Crankshaft (kg•m²) 2.22
Emission Standard N/A
Overall Dimensions with Radiator (L×W×H mm) 2550×1865×2016
Engine Dry Weight without Radiator (kg) 3100
Engine Dry Weight with Radiator (kg) 3500
Engine Wet Weight with Radiator (kg) 3752
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404C
Alternator Rated Power 720kW/900kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Dimensions and Weight
Model BBDA990 (Open Type) BBDA990S (Silent Type)
Length (L) mm 4150 5800
Width (W) mm 1550 2200
Height (H) mm 2550 2550
Tank Capacity (L) 1656 1656
Environmental Adaptability

Ambient Temperature: It can operate effectively in an ambient temperature range of +5°C to +40°C.

Altitude: The generator is suitable for use at altitudes of up to 1000m. If your environmental conditions are different, our sales team is ready to assist you with customized solutions.

Applications

This diesel generator is ideal for a variety of applications, such as:

  • Industrial Use: It can be used as a backup power source for factories, ensuring continuous production during power outages.
  • Commercial Buildings: Office buildings, shopping malls, and hotels can rely on it to maintain essential services like lighting, elevators, and security systems.
  • Residential Areas: Provide reliable power to residential communities, especially in areas with unstable power grids.
Warranty and Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from the ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production quality or raw material issues. After expiration, we provide cost-based spare parts maintenance.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services to ensure your peace of mind.

Why Choose Us
  • Brand Reputation: BOBIG is a well-known and trusted brand in the diesel generator industry with a long history of producing high-quality products.
  • Quality Assurance: Our products are manufactured in strict accordance with international standards, and each generator undergoes rigorous quality inspections before leaving the factory.
  • Customization Options: We understand that different customers have different needs. Our team can provide customized solutions based on your specific requirements.
Company Information

We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.

Our main products include gasoline generators, diesel generators (5-2000kVA), gas generators, pumps, etc. Due to our advanced technique and devices, rich experience, reliable quality, considerate service and good teamwork, we have won a great reputation in the world market.

Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment. We always control product quality strictly and our company has obtained ISO9000 Quality System Certification.

Factory
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 0 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 1
Workshop
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 2 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 3
Equipment
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 4 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 5
Production
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 6 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 7
Testing
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 8 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 9
Package
50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 10 50Hz Super Silent Diesel Generator 720kW Generator Water Cooling 900KVA Diesel Soundproof Water Cooled Generators 720kW 900KVA 11
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C, trade assurance, PayPal, Western Union. Delivery period normally will be 10-15 working days after receiving customers' deposit.

Which port do you often use when export?

Fuzhou port, Fujian province or as customer request.

Is there any spare parts you can provide along with generators to make the maintenance convenient?

We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.

Can you offer parts to us if we need?

Yes, we can offer parts to you at any time, not limited in warranty time. Usually the parts can be sent out during 3-5 days.

For voltage, frequency, tank capacity, phase and color, can you made accord with our requests?

Yes, they can be made according to your needs.

If I want to be your products distributor in our country, what is your distribution policy?

Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
